Webhooks | Smart Swing Tools Docs

Real-Time Swing Data

CSV export gives you historical data on demand. Webhooks give you live data as it happens.

When a swing completes, SSI PRO can automatically send structured JSON to any webhook-compatible endpoint — your database, trading system, or automation platform. No manual exports, no delays.

How It Works

┌──────────────┐     ┌──────────────┐     ┌──────────────────────┐
│  TradingView │     │   Webhook    │     │  Your Database or    │
│    Chart     │────▶│   Endpoint   │────▶│  Automation System   │
└──────────────┘     └──────────────┘     └──────────────────────┘

1. Swing completes    2. JSON sent via     3. Endpoint receives
   on chart              HTTP POST            and processes

The indicator detects a completed swing, formats the data as JSON, and fires a TradingView alert. TradingView sends that alert payload to your configured webhook URL.

Enabling Webhook Output

Setting Name: Enable JSON Webhook
Location: Alerts section
Default: Off

When enabled:

Swing completion alerts send JSON payloads instead of plain text
All human-readable alerts are disabled (Overbalance, Outside Bar, S/R Proximity)
Only the JSON webhook fires through the alert system

Note: This is mutually exclusive with human-readable alerts. If you need both webhook data AND human-readable notifications, add the indicator to your chart twice — one instance with JSON Webhook enabled (for database), one with it disabled (for notifications).

Tip: For the notifications-only instance, disable visual elements to keep your chart clean:

Set "Show Swing Lines" to OFF
Set "Show Range Labels" to OFF
The indicator runs invisibly as a dedicated alert engine

You still need to create a TradingView alert and configure the webhook URL — this setting controls the alert content format.

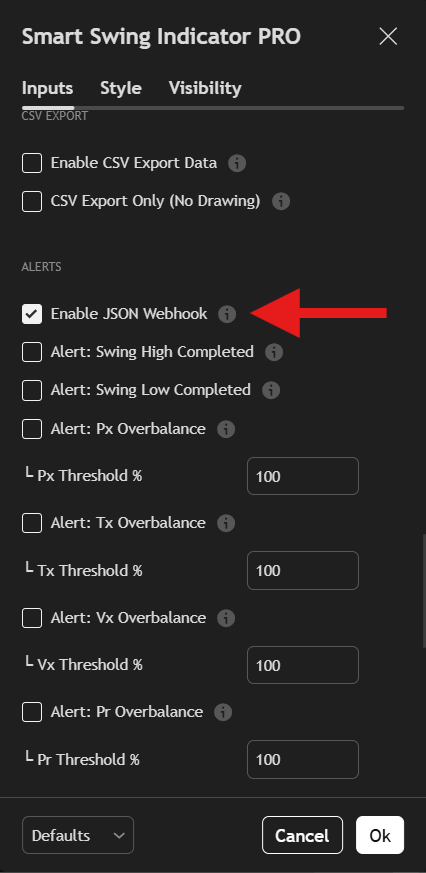

Enable JSON Webhook to receive structured data.

JSON Payload Structure

Each webhook sends a single JSON object:

json

{
  "symbol": "ES",
  "timeframe": 1440,
  "period": 1,
  "type": 1,
  "price": 4525.75,
  "extreme_ts": 1731801600000,
  "confirm_ts": 1731888000000,
  "pattern": 0
}

Field Definitions

Field	Type	Description
`symbol`	String	Instrument root symbol (e.g., "ES", "SI", "AAPL")
`timeframe`	Integer	Chart timeframe in minutes (1440 = Daily)
`period`	Integer	Swing period setting (1, 2, 3, etc.)
`type`	Integer	Swing direction: `1` = High, `-1` = Low
`price`	Float	Price at the swing extreme
`extreme_ts`	Integer	Unix timestamp (ms) when extreme formed
`confirm_ts`	Integer	Unix timestamp (ms) when swing confirmed
`pattern`	Integer	Formation pattern code (0-5)

Pattern Codes

Code	Pattern
0	Regular reversal
1	OB Reversal
2	OB Continuation
3	False OB
4	Engulfing Reversal
5	Engulfing Continuation

Symbol Normalization

The symbol field uses syminfo.root, which strips exchange prefixes and contract notation:

Chart Shows	Webhook Sends
`COMEX:SI1!`	`SI`
`CME_MINI:ES1!`	`ES`
`NASDAQ:AAPL`	`AAPL`

This ensures consistency across exports and simplifies database matching.

Setting Up the Alert

Enable the setting: Turn on "Enable JSON Webhook" in indicator settings
Create alert: Right-click chart → Create Alert
Select condition: Choose SSI PRO swing completion
Configure webhook:
- In Alert Actions, enable "Webhook URL"
- Enter your endpoint URL
Set alert options: Name, expiration, frequency
Create: Save the alert

The alert will fire once per completed swing, sending the JSON payload to your endpoint.

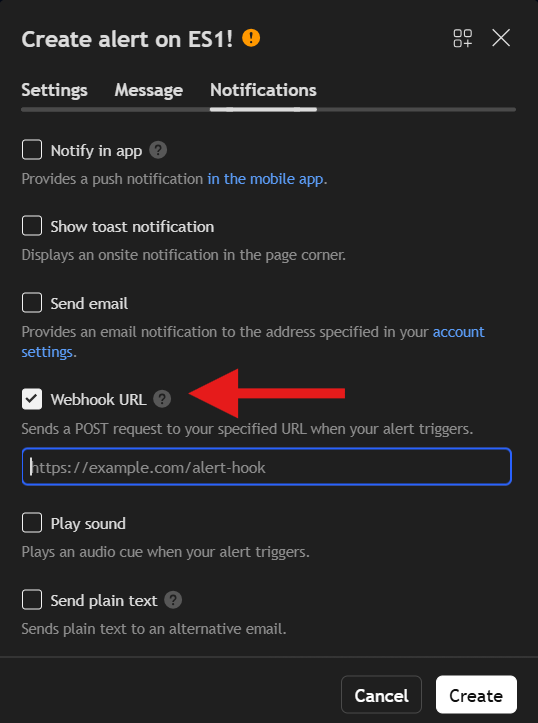

Configure your webhook URL in the alert settings.

Receiving Webhooks

Your endpoint receives an HTTP POST request with:

Content-Type: application/json
Body: The JSON payload

Endpoint Requirements

Your webhook endpoint must:

Accept POST requests
Return HTTP 200 on success
Process the JSON body

TradingView retries failed webhooks, so design your endpoint to handle duplicates gracefully.

Database Integration

Supabase Edge Function Example

javascript

import { serve } from "https://deno.land/std@0.168.0/http/server.ts"
import { createClient } from 'https://esm.sh/@supabase/supabase-js@2'

serve(async (req) => {
  const supabase = createClient(
    Deno.env.get('SUPABASE_URL'),
    Deno.env.get('SUPABASE_SERVICE_ROLE_KEY')
  )

  const payload = await req.json()

  const { error } = await supabase
    .from('swings')
    .insert({
      symbol: payload.symbol,
      timeframe_minutes: payload.timeframe,
      swing_period: payload.period,
      swing_type: payload.type,
      swing_price: payload.price,
      extreme_timestamp: payload.extreme_ts,
      confirm_timestamp: payload.confirm_ts,
      pattern: payload.pattern
    })

  if (error) {
    return new Response(JSON.stringify({ error: error.message }), {
      status: 400
    })
  }

  return new Response(JSON.stringify({ success: true }), {
    status: 200
  })
})

Node.js/Express Example

javascript

const express = require('express');
const app = express();

app.use(express.json());

app.post('/webhook/swing', async (req, res) => {
  const { symbol, timeframe, period, type, price, extreme_ts, confirm_ts, pattern } = req.body;

  // Insert into your database
  await db.query(`
    INSERT INTO swings (symbol, timeframe_minutes, swing_period, swing_type,
                        swing_price, extreme_timestamp, confirm_timestamp, pattern)
    VALUES ($1, $2, $3, $4, $5, $6, $7, $8)
    ON CONFLICT DO NOTHING
  `, [symbol, timeframe, period, type, price, extreme_ts, confirm_ts, pattern]);

  res.status(200).json({ success: true });
});

app.listen(3000);

Deduplication

Use a unique constraint to prevent duplicate entries:

sql

UNIQUE(symbol, timeframe_minutes, swing_period, extreme_timestamp, swing_type)

This allows the same webhook to be received multiple times (network retries, alert re-fires) without creating duplicate records.

Multi-Instrument Setup

To track swings across multiple instruments:

Add SSI PRO to each chart
Enable JSON Webhook on each instance
Create a webhook alert for each chart
Point all alerts to the same endpoint

Your database differentiates records by the symbol field.

Multi-Timeframe Setup

To track multiple timeframes for one instrument:

Open the instrument on Daily, Weekly, and Monthly charts
Add SSI PRO to each chart
Create webhook alerts for each
All point to the same endpoint

Your database differentiates by the timeframe field.

CSV vs Webhook: When to Use Each

Use Case	Recommended
Initial database population	CSV Export
Ongoing real-time updates	Webhook
Historical analysis	CSV Export
Automated trading systems	Webhook
Periodic full refresh	CSV Export
Live monitoring dashboard	Webhook

Best practice: Use CSV export to populate your initial database, then webhooks to keep it current. Periodic CSV reconciliation can catch any missed webhooks.

Troubleshooting

Webhook Not Firing

Verify "Enable JSON Webhook" is ON in indicator settings
Check that the TradingView alert is active (not expired)
Confirm the alert condition is set to swing completion
Test your endpoint independently

Duplicate Records

Implement the unique constraint in your database. Webhooks may fire multiple times due to:

TradingView retries on failed delivery
Alert configuration issues
Network timeouts with successful delivery

Missing Swings

Webhooks only fire for new swings after the alert was created. For historical data, use CSV export.

Symbol Mismatch

Ensure your database uses the root symbol (ES, SI, AAPL) not the full TradingView notation (ES1!, COMEX:SI1!).

Summary

Webhooks provide real-time swing data delivery:

JSON payload with complete swing information
Automatic firing on each swing completion
Direct integration with databases and automation systems
Combine with CSV export for complete coverage

Enable the setting, create a TradingView alert with your webhook URL, and your endpoint receives structured swing data as it happens.
